O2 data SIM on Zyxel 5103e router

[Cocat2517]

Hi

I have a Zyxel 5103e router that is a Three branded router. I'm told it's unlocked and I just need to change DNS/apn settings to get my O2 data SIM to work on it, however I'm struggling with how to do that.

I've added mobile.o2co.uk with 87.194.0.51 as a DNS but it's not connecting. Is this correct and what else do I need to do?

Thanks,

[MI5]

@Cocat2517

Use these settings

Here

[jonsie]

• Name: o2 Internet.
• APN: mobile.o2.co.uk (PAYG - payandgo.o2.co.uk)
• Username: o2web (PAYG - payandgo)
• Password: password.
• MMS Proxy: 82.132.254.1.
• MMS Port: 8080.
• Authentification Type: PAP.
• APN Type: internet+MMS. ( If an entry is required type a * on its own)

[Cocat2517]

Hi, thanks, I looked and there doesn't seem to be many options for those settings, for example under APN settings there doesn't appear to be anywhere to enter an IP address, there's no field for one. I put mobile.o2.co.uk and chose PAP and ipv4.

For DNS I put mobile.o2.co.uk with IP 87.194.0.51

[MI5]

@Cocat2517

All you need is:

Name : o2 mobile web

APN : mobile.o2.co.uk (PAYG - payandgo.o2.co.uk)

Proxy, Port  : Please leave blank

Username - o2web (PAYG - payandgo)

Password - password

Authentication type - PAP (try different options if not working).

APN Protocol: IPv4

[Cocat2517]

 

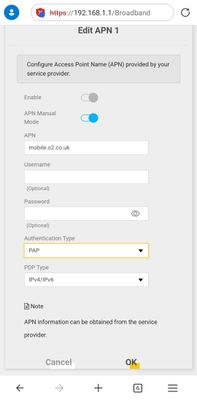

These are the DNS and cellular APN settings screens it gives.

[MI5]

@Cocat2517

No need for the DNS info. This should be set automatically or choose "auto"

Might be an issue with it being a Three device though.

[Cocat2517]

Thanks, was told it should work ok as it's been unlocked to any network and tested.

I entered settings and it connected this time, only problem now is it's rebooting itself every minute or two.

[MI5]

@Cocat2517

Do a full reset and try again.

If it continues to reboot, it's faulty.

[madasaf1sh]

@Cocat2517

You would be better on the likes of the ISP Review's forum, i think there is a thread all about these routers..

https://www.ispreview.co.uk/talk/threads/new-three-5g-hub-nr5103e.38663/
